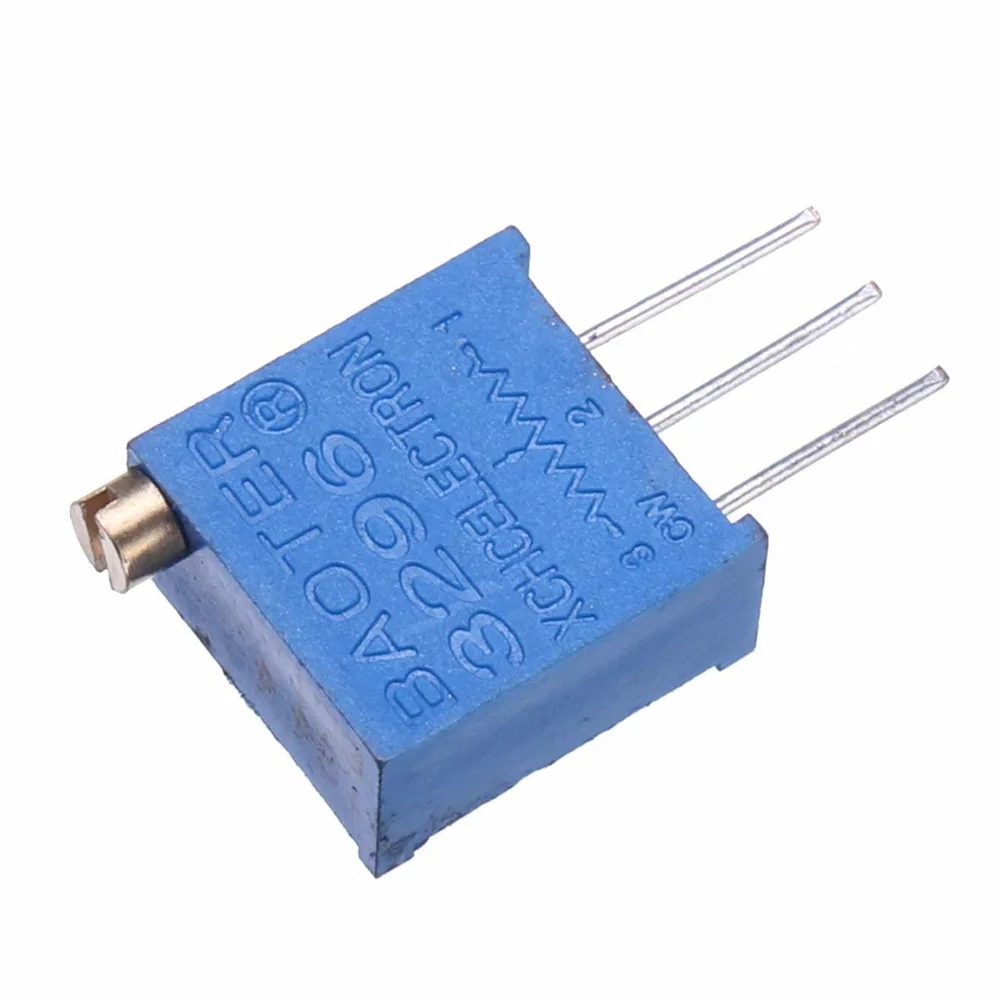

Trimmer Potentiometer Multi Turn 3296W-1-101 100Ω 0.5W 3 Pins Through Hole
EGP8.00
Trimmer Potentiometer Multi-Turn 3296W-1-101 100Ω 0.5W 3 Pins Through Hole. Precision adjustable resistor for fine-tuning applications.
Add to cart
Buy Now
The Trimmer Potentiometer Multi-Turn 3296W-1-101 is a high-precision, adjustable resistor designed for fine-tuning electrical circuits. With a resistance of 100Ω and a power rating of 0.5W, this potentiometer provides an efficient solution for adjusting voltage, current, or resistance in various electronic applications.
Features:
- 100Ω resistance for precise resistance control.
- 0.5W power rating suitable for low-power applications.
- Multi-turn design for fine resistance adjustments.
- 3-pin through-hole mounting for easy PCB integration.
Specifications:
| Product Attribute | Attribute Value |
| Product Category: | Trimmer Resistors – Through Hole |
| Series: | 3296 |
| Termination Style: | PC Pin |
| Product: | Multiturn |
| Number of Turns: | 25 |
| Resistance: | 100 Ohms |
| Adjustment: | Top Cross Adjustment |
| Power Rating: | 500 mW (1/2 W) |
| Voltage Rating: | 300 V |
| Tolerance: | 10 % |
| Temperature Coefficient: | 100 PPM / C |
| Orientation: | Vertical Adjustment |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 125 C |
| Element Type: | Cermet |
| Height: | 10.03 mm |
| Length: | 9.53 mm |
| Mounting Style: | PCB Mount |
| Tradename: | Trimpot |
| Type: | 0.375 in Square Trimpot Trimmer Resistor |
| Width: | 4.83 mm |
Pinout & Footprint:
Applications:
- Calibration of electronic circuits.
- Tuning for audio and communication systems.
- Voltage regulation and fine-tuning in power supplies.
- Adjustments in instrumentation and measurement devices.
- Testing and troubleshooting in electrical systems.
Package Include:
1x Trimmer Potentiometer Multi Turn 3296W-1-101 100Ω 0.5W 3 Pins Through Hole.
