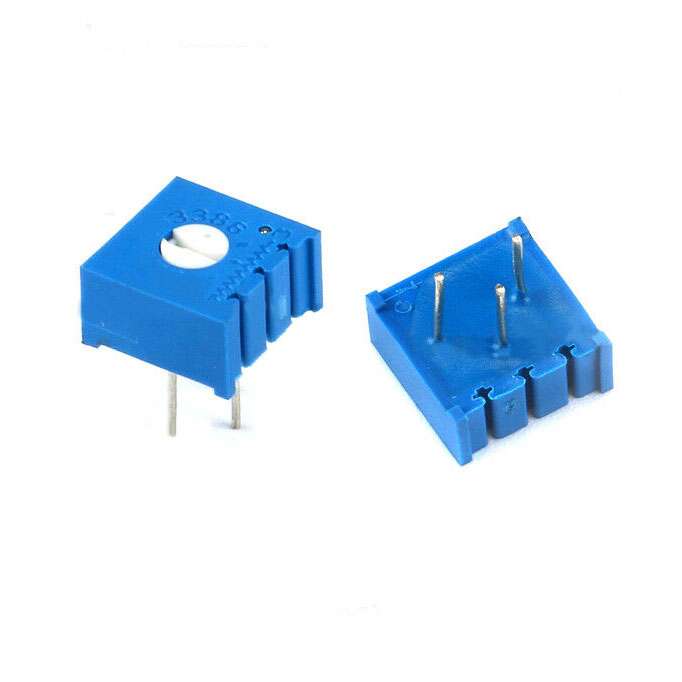

Trimmer Potentiometer 3386P-1-102 1kOhm 0.5W 3 Pins Through Hole
EGP7.00
Trimmer Potentiometer
Add to cart
Buy Now
| Product Attribute | Attribute Value |
| Category | Potentiometers, Variable Resistors Trimmer Potentiometers |
| Series: | Trimpot® 3386 – Sealed |
| Termination Style: | PC Pin |
| Product: | Single Turn |
| Number of Turns: | 1 |
| Resistance: | 1 kOhms |
| Adjustment Type: | Top Adjustment |
| Power Rating: | 500 mW (1/2 W) |
| Voltage Rating: | 300 V |
| Tolerance: | 10 % |
| Temperature Coefficient: | 100 PPM / C |
| Orientation: | Vertical Adjustment |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 125 C |
| Element Type: | Cermet |
| Height: | 4.83 mm |
| Length: | 9.53 mm |
| Mounting Style: | PCB Mount |
| Tradename: | Trimpot |
| Width: | 9.53 mm |
