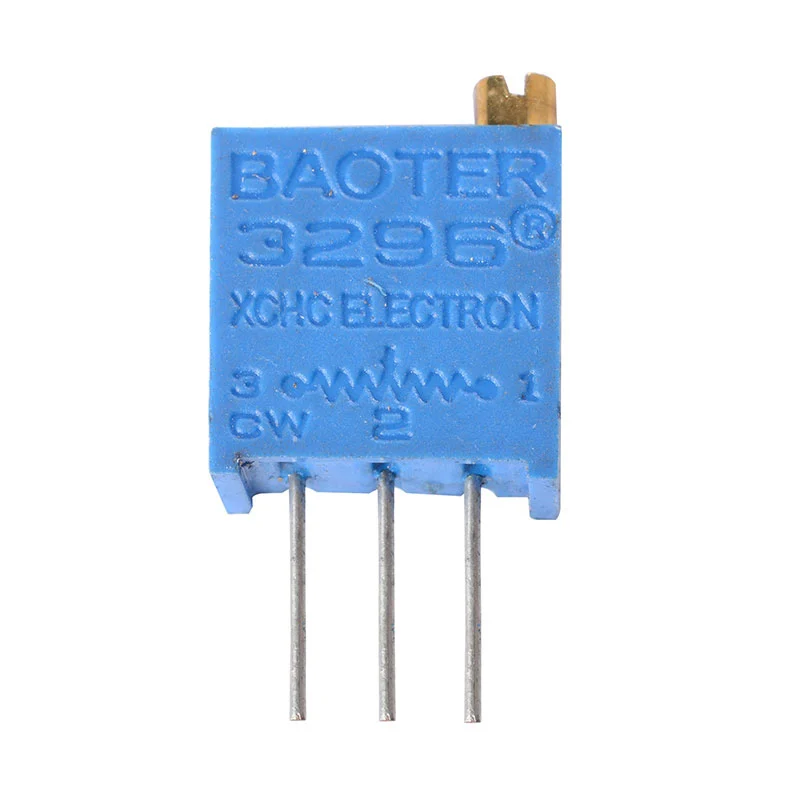

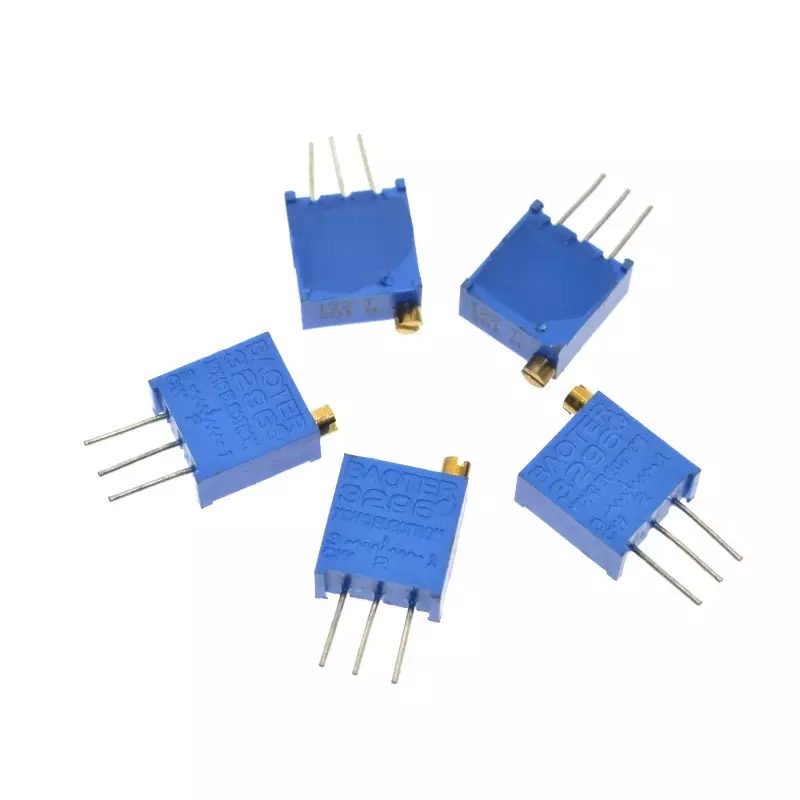

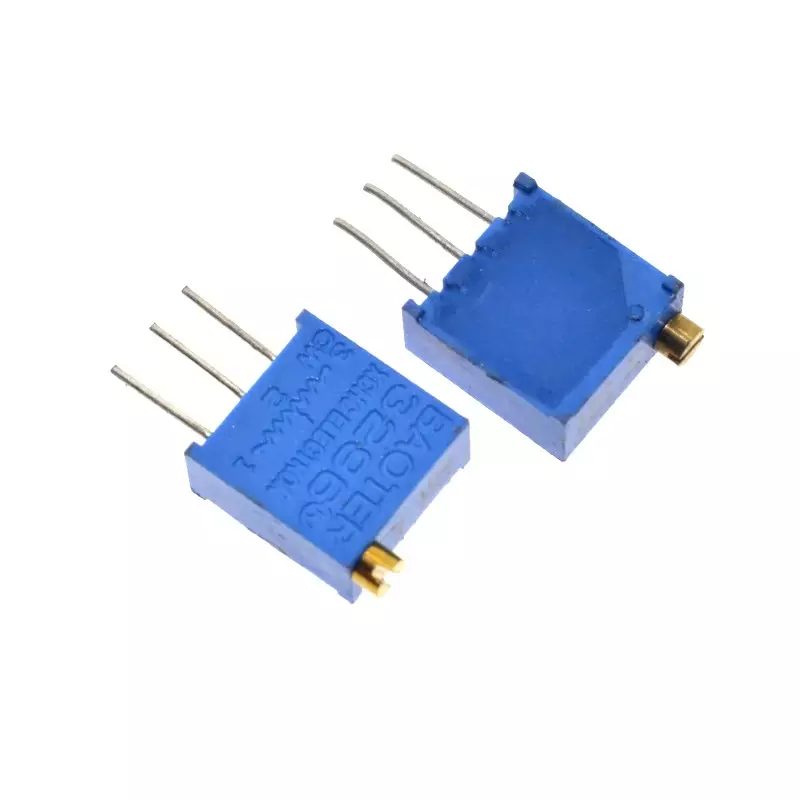

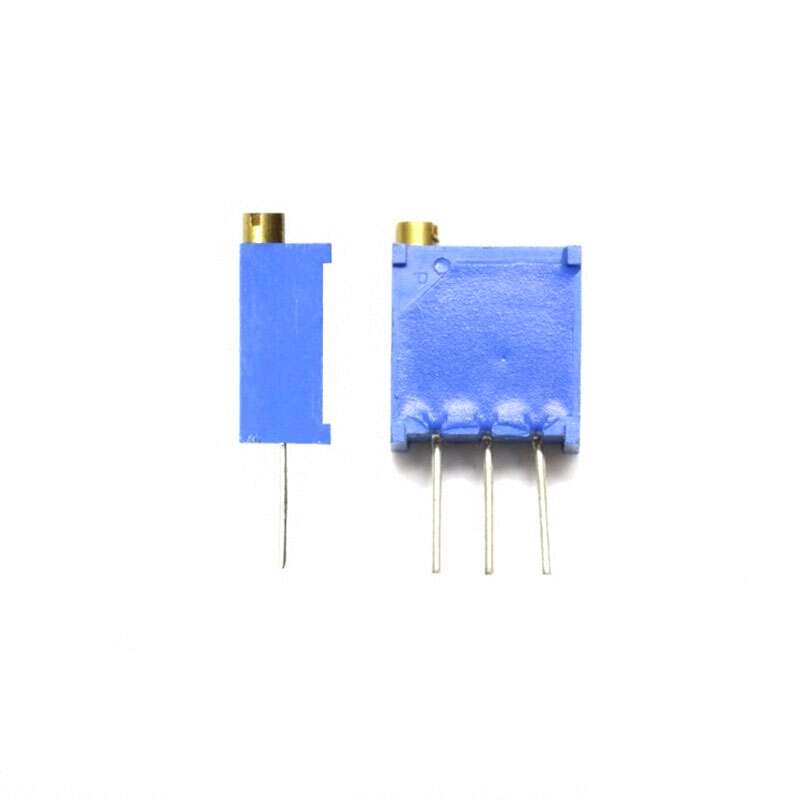

3296W-1-104 Trimmer Potentiometer Multiturn 100KΩ 0.5W 3 Pin Through hole
EGP8.00
3296W-1-104 Precision multi-turn trimmer potentiometer used for accurate voltage adjustment, resistance calibration, and signal tuning in electronic circuits.
Add to cart
Buy Now
Features:
- Multi-turn precision adjustment.
- Smooth and accurate tuning.
- Compact through-hole design.
- Stable resistance characteristics.
- Durable and reliable construction.
- Easy PCB mounting.
- Long operational life.
- High adjustment sensitivity.
- Low noise performance.
- Suitable for calibration circuits.
Specifications:
| Physical | |
| Color | Blue |
| Contact Plating | Lead, Tin |
| Mount | Panel, Through Hole |
| Technical | |
| Composition | Cermet |
| Max Operating Temperature | 125 °C |
| Max Power Dissipation | 500 mW |
| Military Standard | Not |
| Min Operating Temperature | -55 °C |
| Number of Turns | 25 |
| Power Rating | 500 mW |
| Resistance | 100 kΩ |
| Taper | Linear |
| Temperature Coefficient | 100 ppm/°C |
| Termination | Pin |
| Tolerance | 10 % |
| Voltage Rating (DC) | 500 V |
