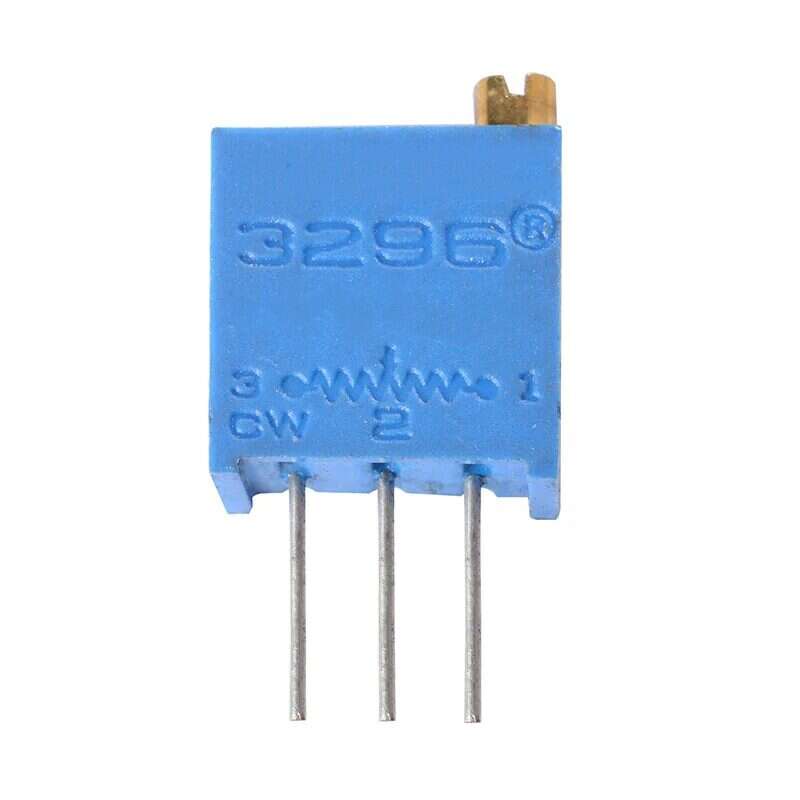

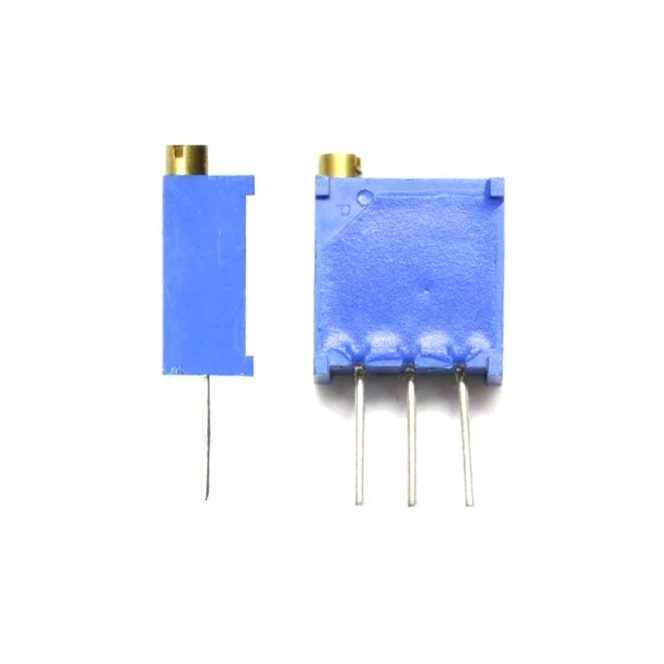

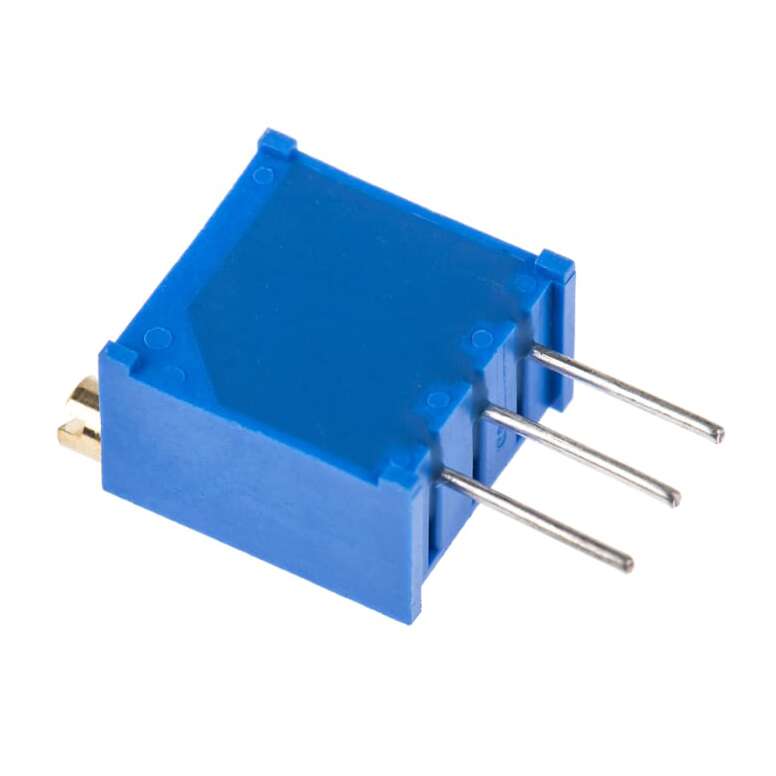

3296W-1-102 Trimmer Potentiometer Multi Turn 1KΩ 0.5W 3 Pins Through Hole
EGP8.00
The 3296W-1-102 is a 1kΩ multi-turn trimmer potentiometer with 3 pins , rated for 0.5W , and designed for precise adjustment in electronic circuits, through-hole mounting.
Add to cart
Buy Now
Specifications:
| Product Attribute | Attribute Value |
| Product Category: | Trimmer Resistors – Through Hole |
| Series: | 3296 |
| Termination Style: | PC Pin |
| Product: | Multiturn |
| Number of Turns: | 25 |
| Resistance: | 1 kOhms |
| Adjustment: | Top Cross Adjustment |
| Power Rating: | 500 mW (1/2 W) |
| Voltage Rating: | 300 V |
| Tolerance: | 10 % |
| Temperature Coefficient: | 100 PPM / C |
| Orientation: | Vertical Adjustment |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 125 C |
| Element Type: | Cermet |

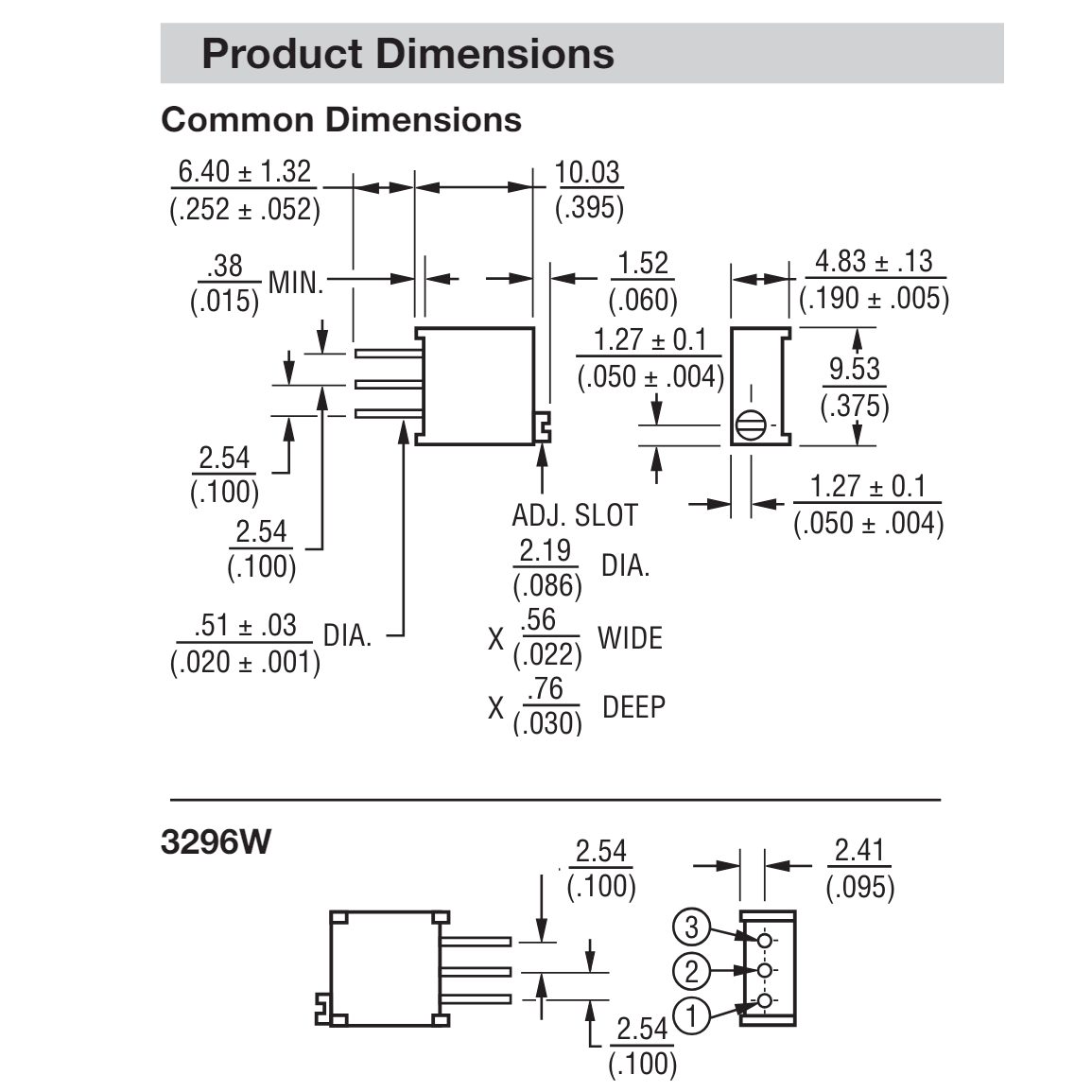

| Height: | 10.03 mm |
| Length: | 9.53 mm |
| Mounting Style: | PCB Mount |
| Tradename: | Trimpot |
| Type: | 0.375 in Square Trimpot Trimmer Resistor |
| Width: | 4.83 mm |
